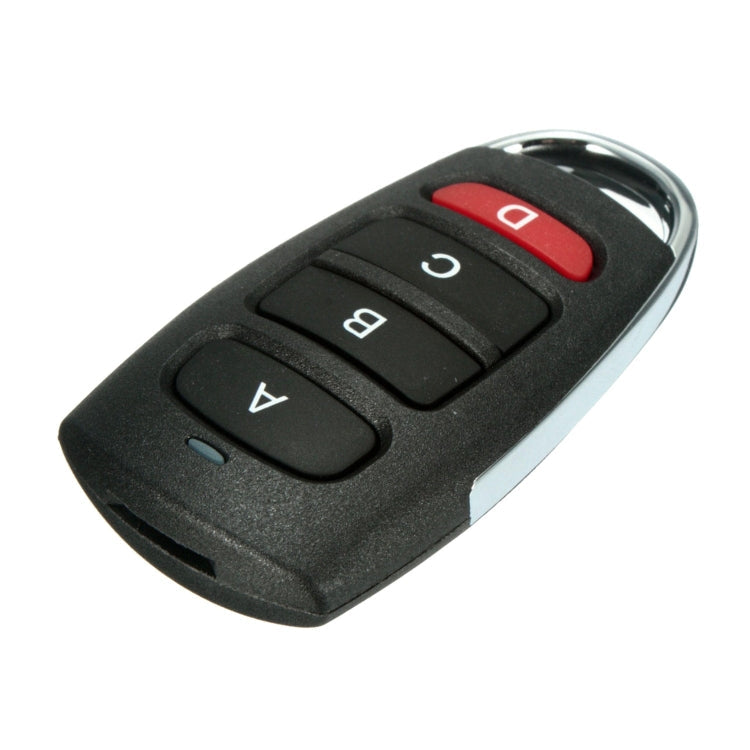

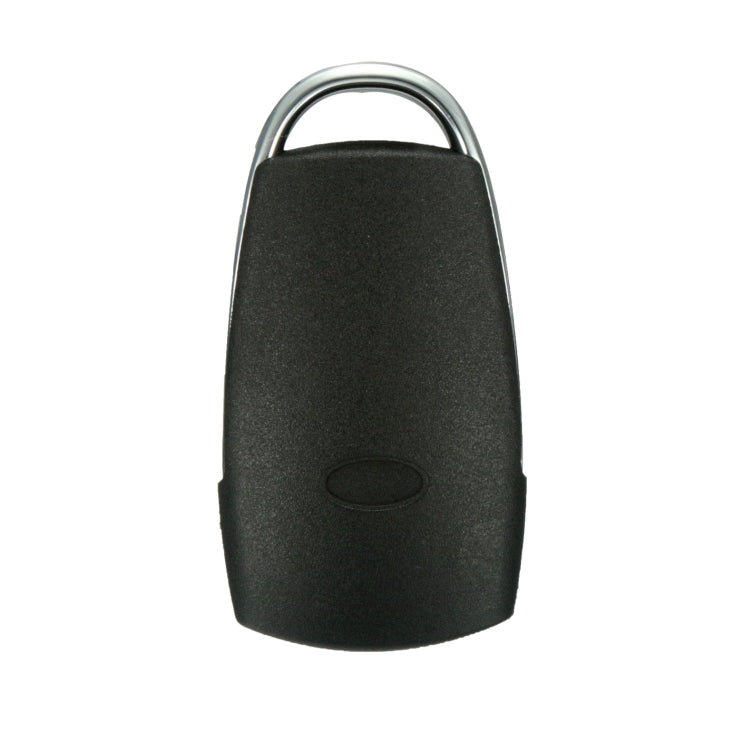

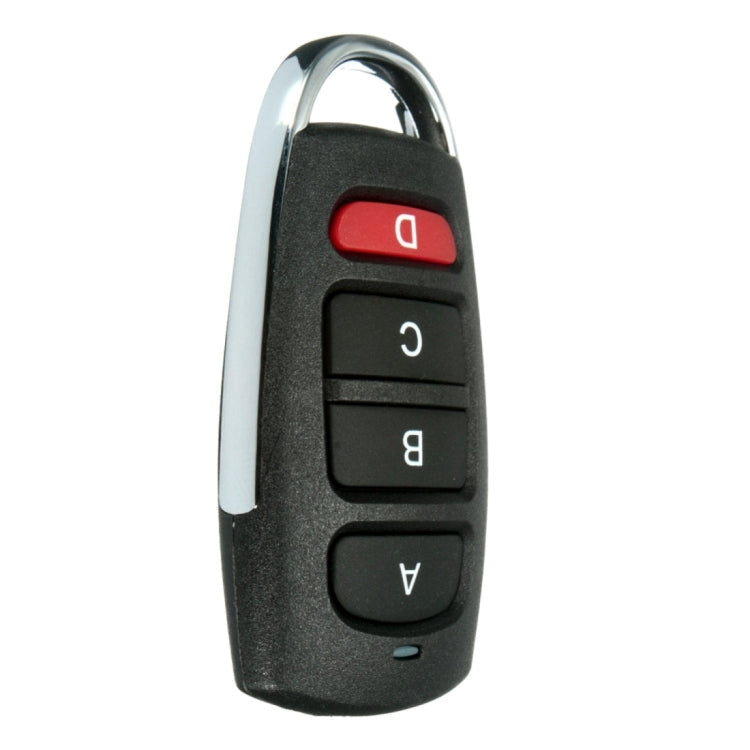

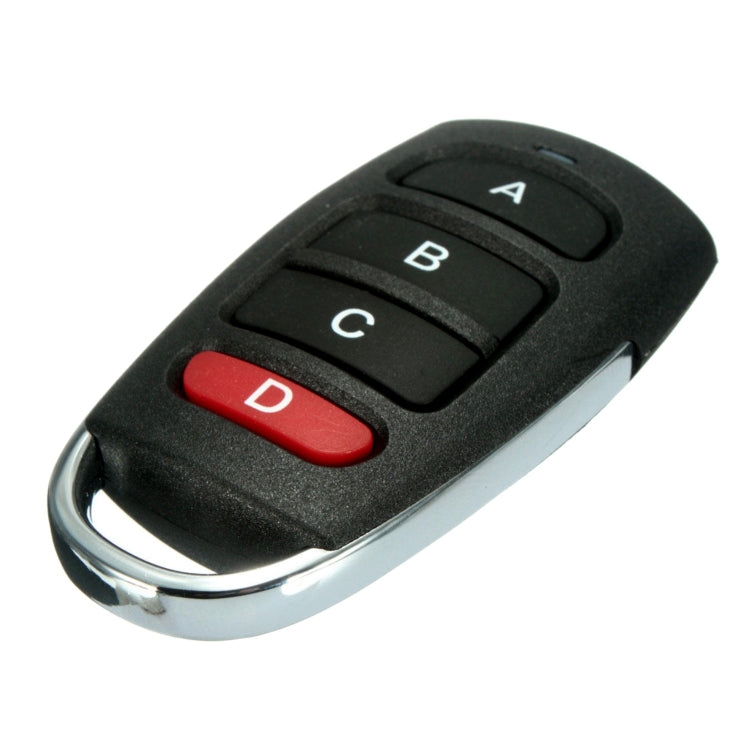

LDTR-WG0229 Universal 433mhz Electric Gate Garage Door Remote Control Key Fob Cloning r

Features
1. Latest IC programming procedure preventing accidentally remove code.
2. 4-Channel Wireless Remote Control Duplicator for Cars, Car Sunroofs, Garage Doors, Gate Doors, Alarm Systems, Heating Systems, Home automation e.g. Lighting and etc.
3. This is a fixed frequency remote r 433mhz for copying 99.99% common fixed & learning code remote controls.
4. up to 2 remote signals from 2 different remotes.

Specification
1. Color: Black
2. Material: Plastic
3. Button: 4 Buttons
4. Size: As picture shown
5. Frequency: 433 mhz
6. Transmit distance: 50-100m (Open space)
7. Operation: 6V DC Battery CR2016 (2x 3V CR2016 Battery included)
8. Decoder IC: All learning code/fixed code. (All manufacturers)
9. Such As: 2260 (All manufacturers) / 2262 (All manufacturers) / PT2264/ 5326 (All manufacturers) / SC5262/ HT600/ HT680/ HT6207/ HT6010/ HT6012/ HT6014/ SMC918 series/ 527 (All manufacturers) / 1527 (All manufacturers) / 2240 (All manufacturers) and so on.
10. Please note: Rolling code and special fixed code can not be d.
11. Package includes:
- 1 x 4-Channel Remote Control (With battery)

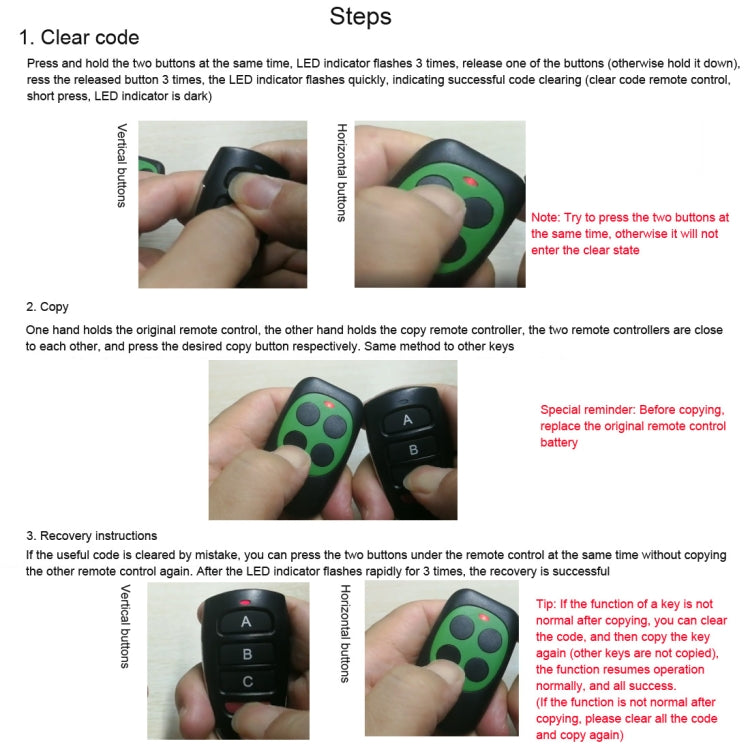

How to Program
Step-1 Clear the history code from duplicator
1. Press button A and B continuously until LED flash 3 times
2. Release button B (Keep pressing button A), and press button B Slowly for 3 times, LED flash
3. Release button A, finish code clearance.
- If code clearance done properly, short press any button. Light wont flash at all.
- If light flash when short press any button clearance process done wrong. Please repeat clearance process again.

Step-2 Copy code from original transmitter
1. Place the r remote and the original remote close together side by side. Make sure they are touching.
2. Simultaneously press a button on your original remote and one of the buttons on the remote and hold until the LED on the remote flashes steadily.
3. The Blue LED will first flash 3 times quick, then stops for a second, then flashes steadily.
4. Release both buttons. Programming is successful. Copy other buttons in same way.
