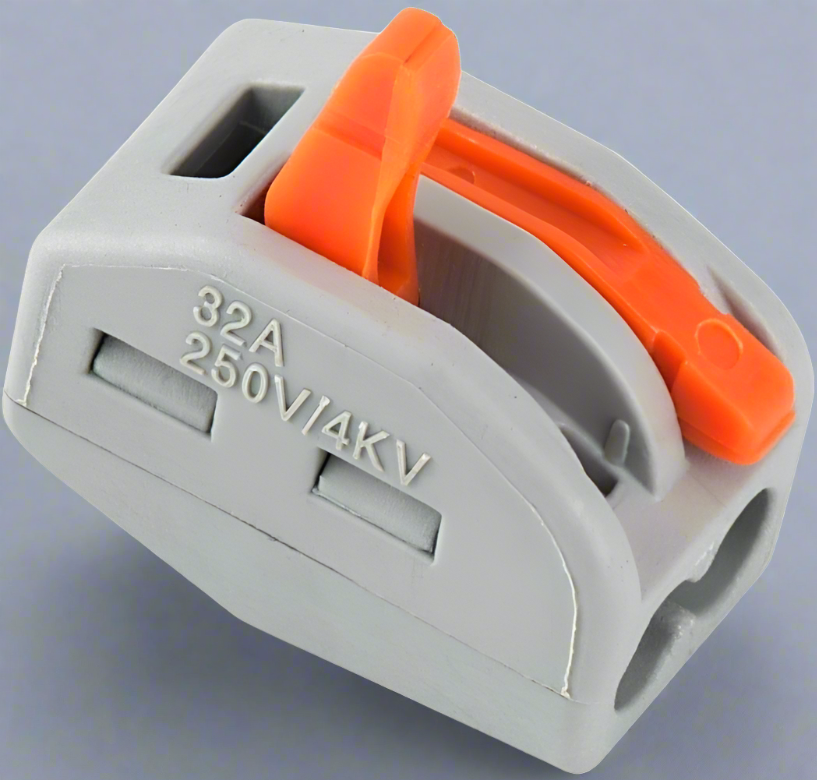

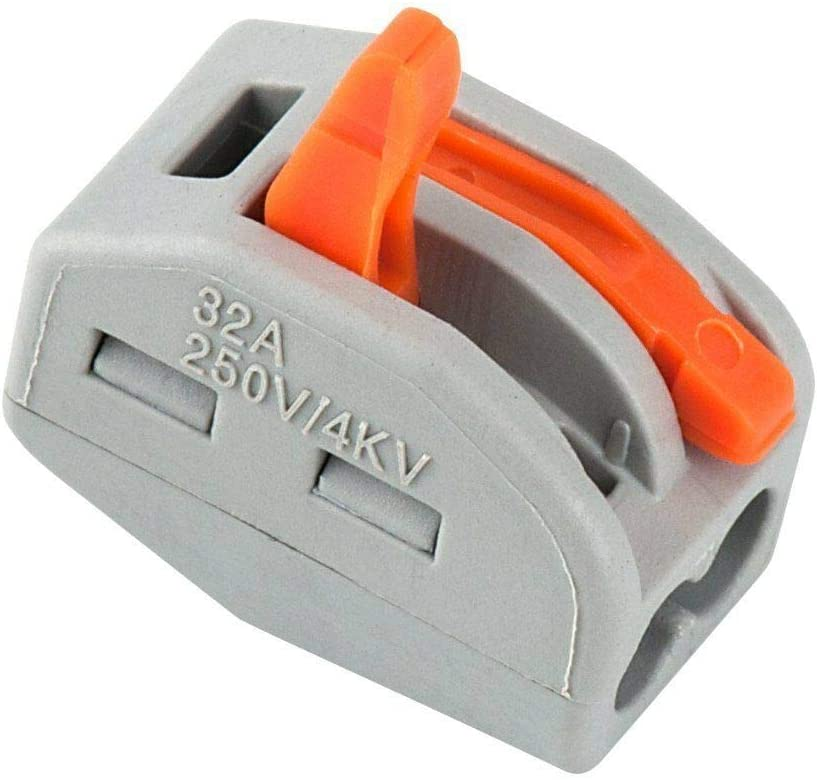

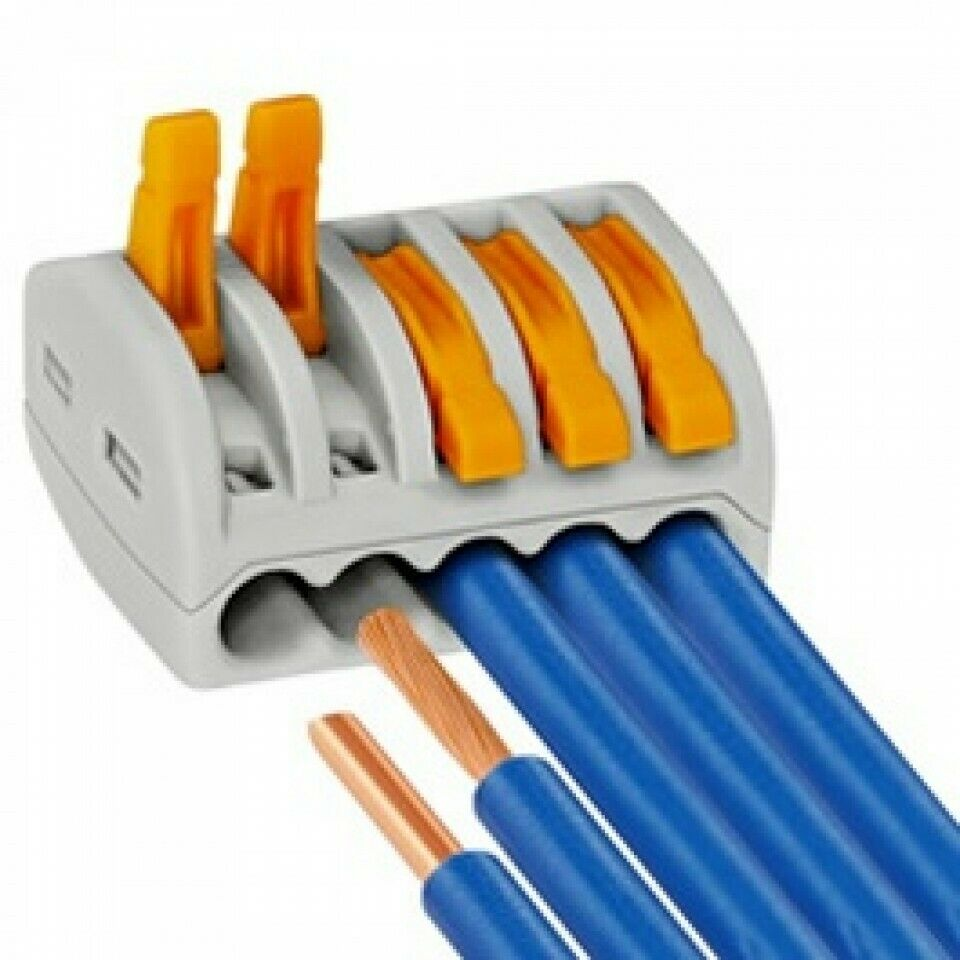

2/3/5 Way Spring Lever Wire Connectors | Reusable Terminal Block~2036

Description

• Color: Clear and Orange

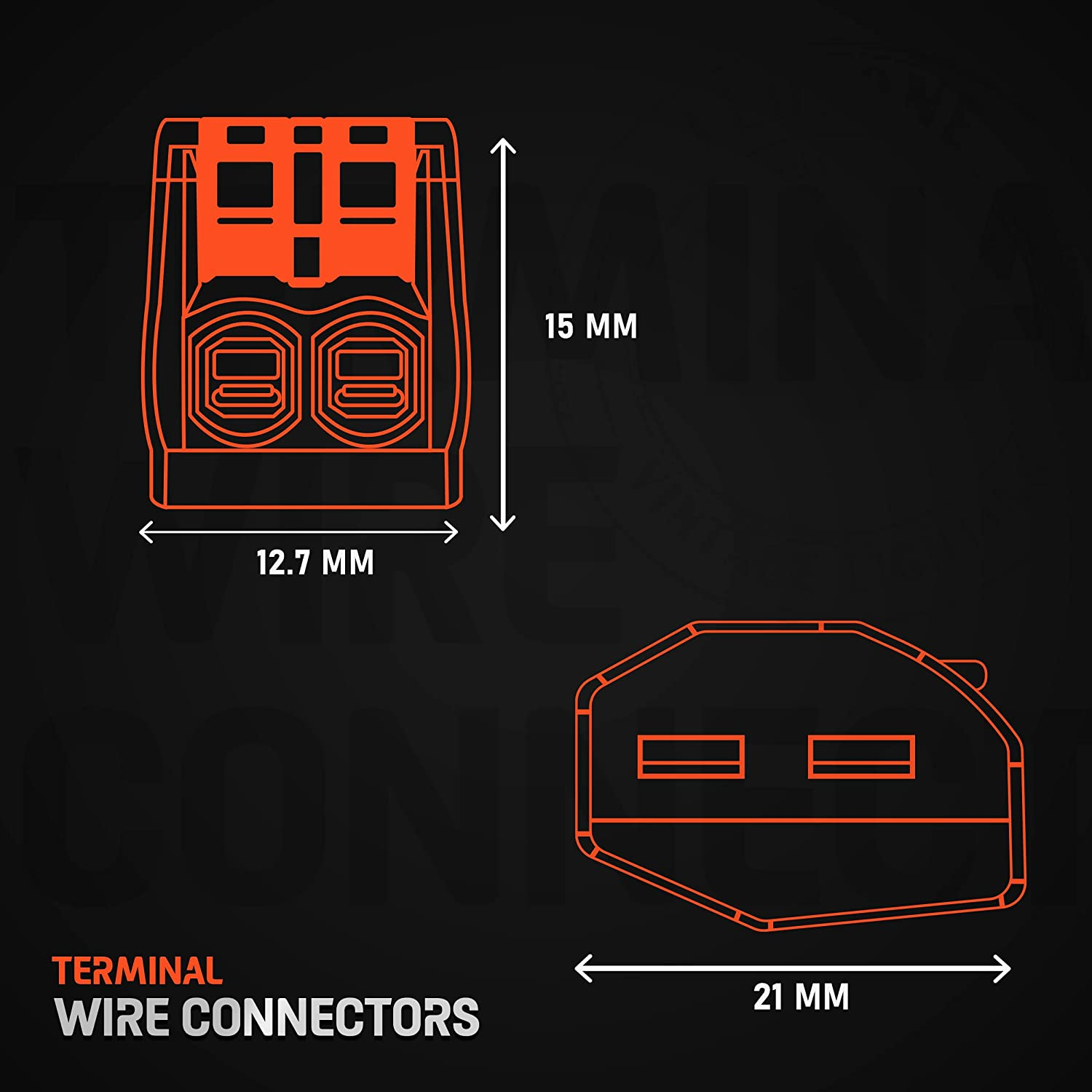

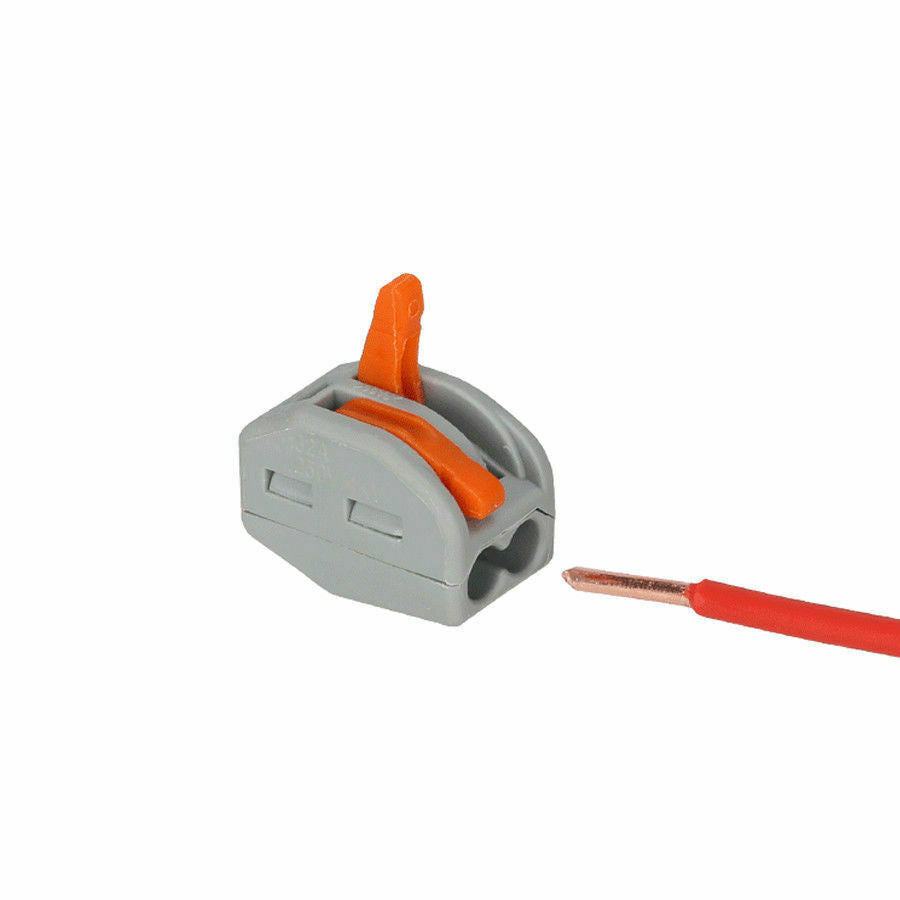

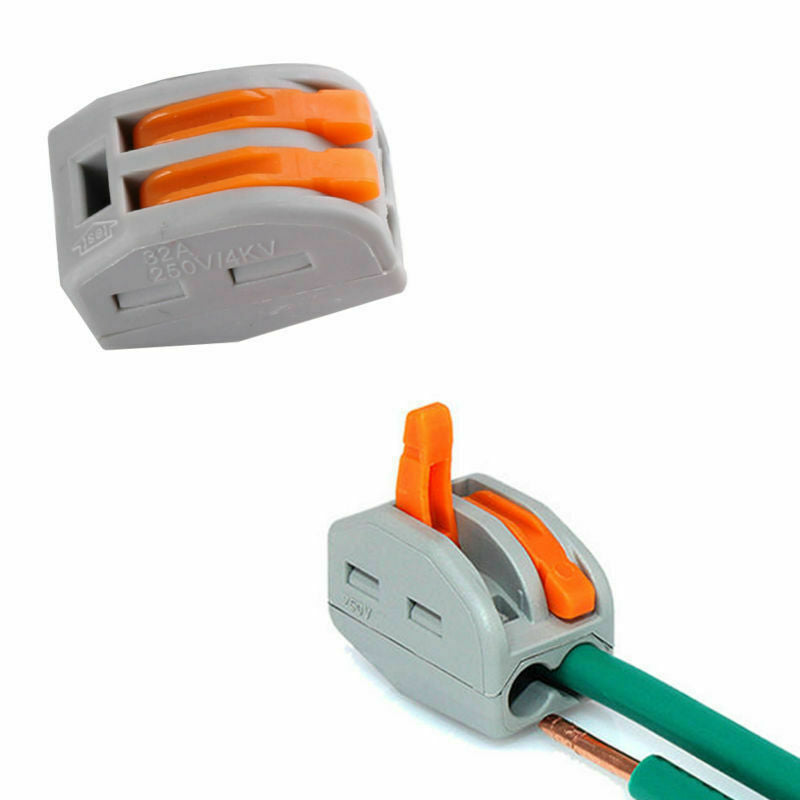

• 2 Way: 20 x 12 x 19 mm / 0.78" x 0.47" x 0.74" (LxWxH)

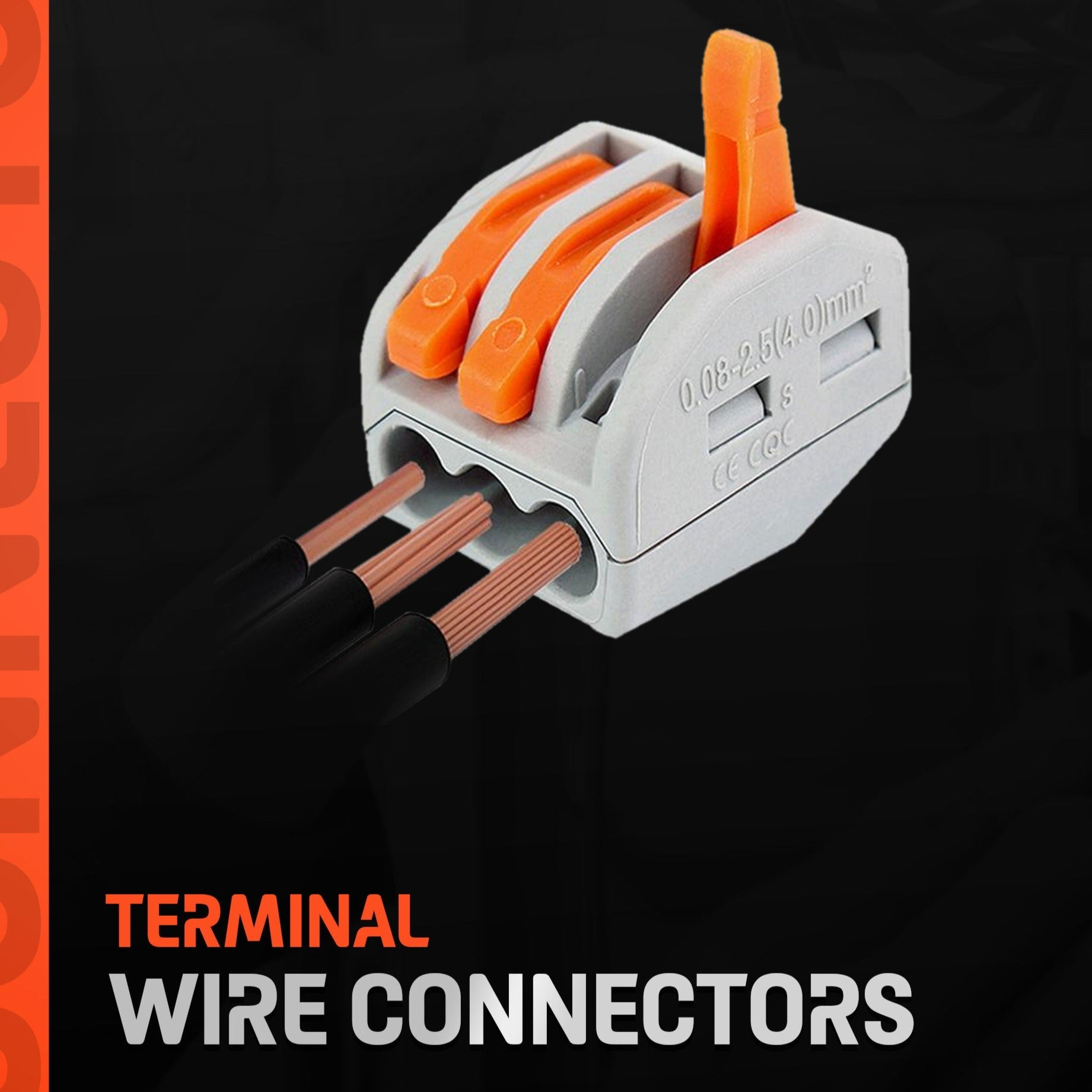

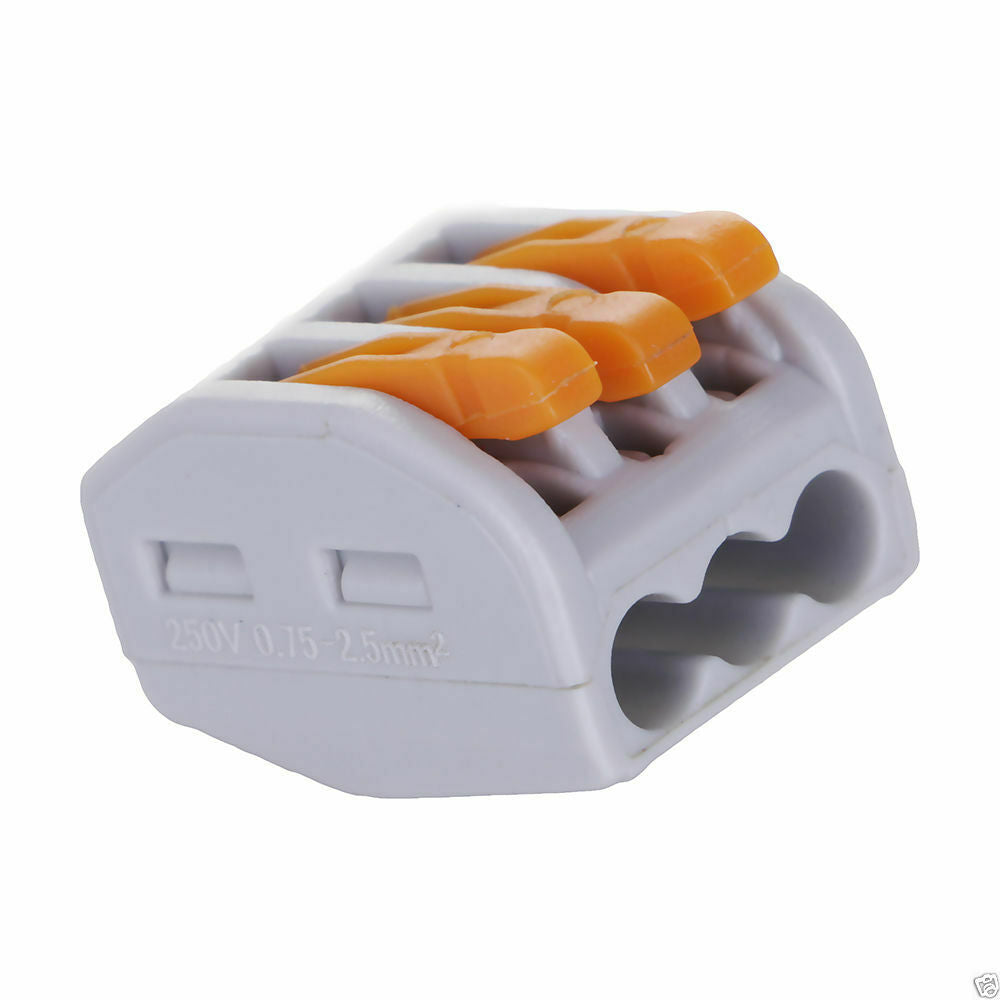

• 3 Way: 20 x 16 x 19 mm / 0.78" x 0.63" x 0.74" (LxWxH)

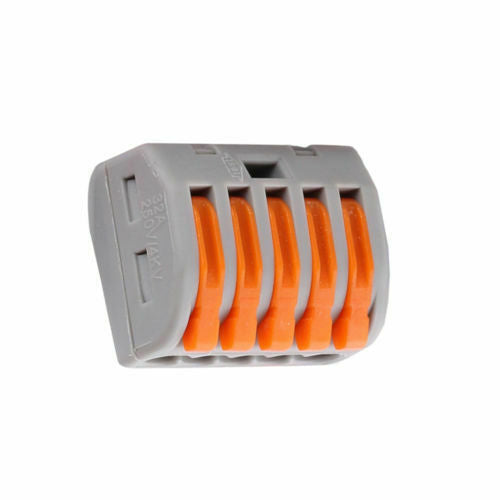

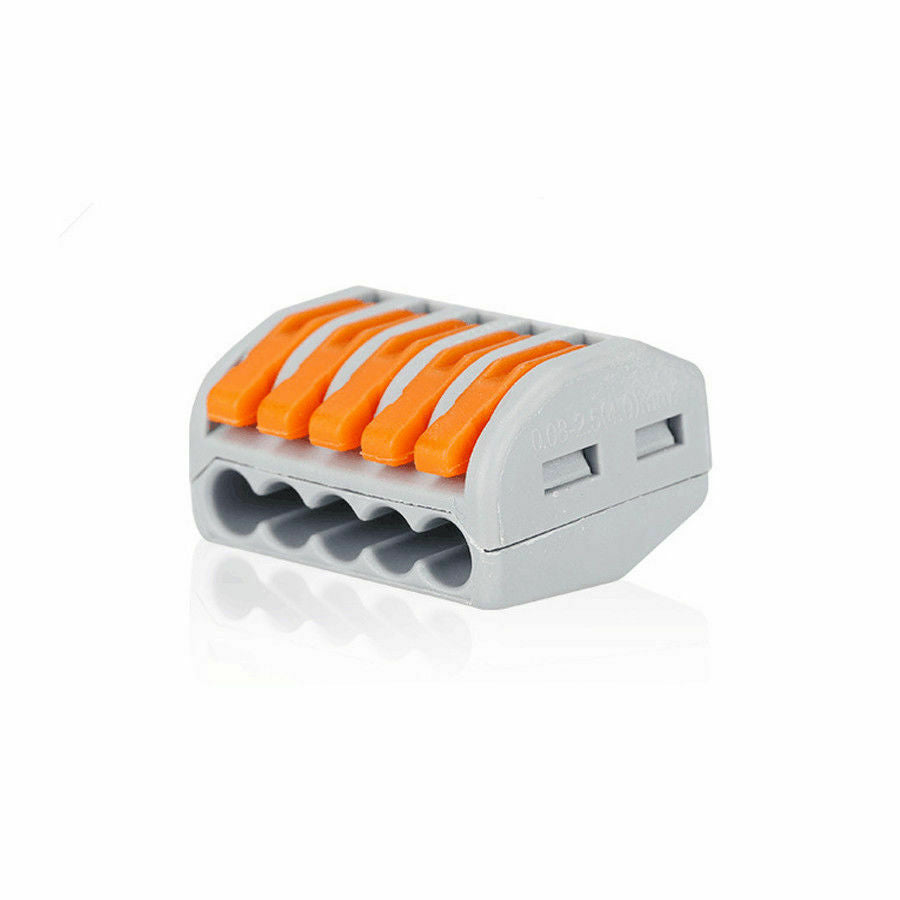

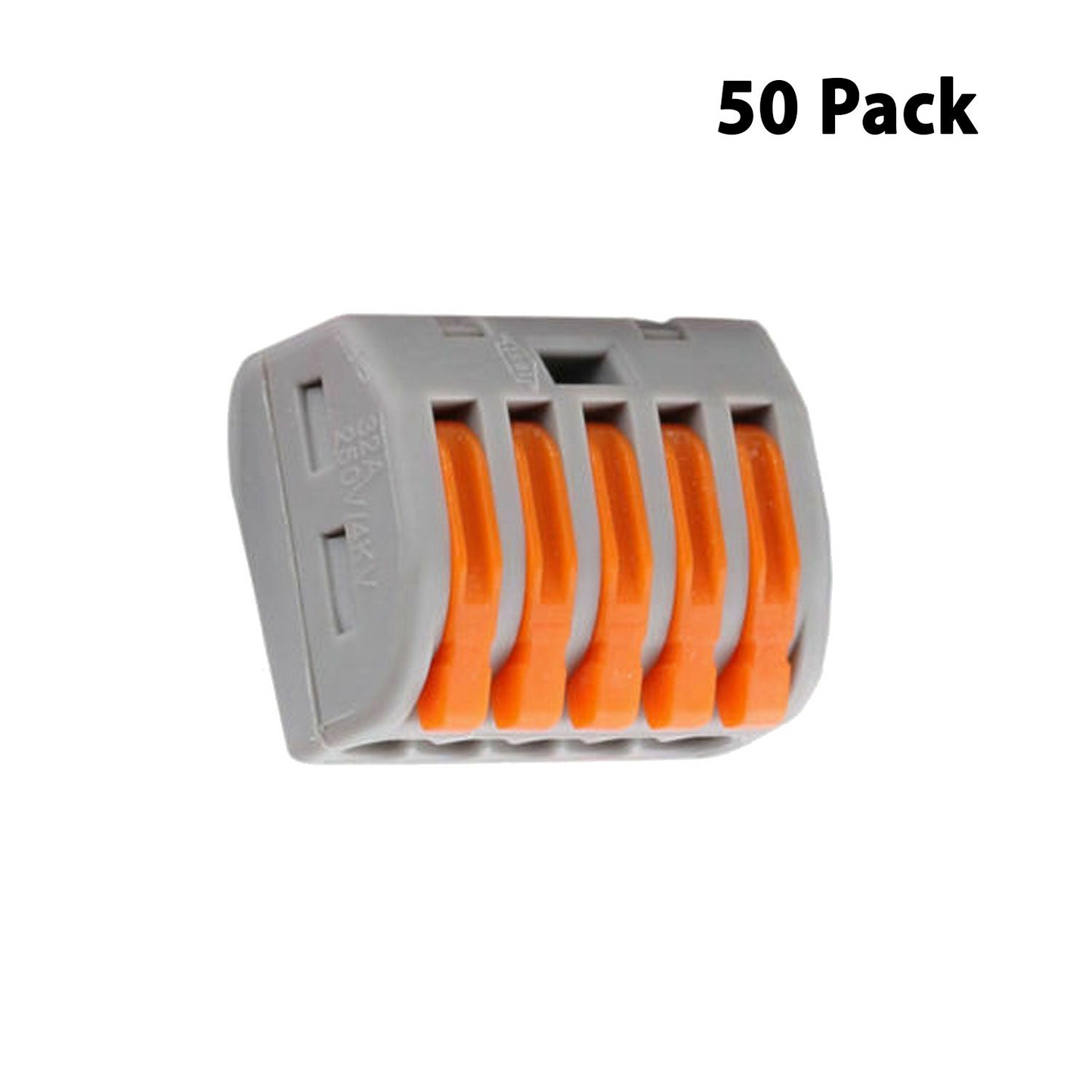

• 5 Way: 20 x 26 x 19 mm / 0.78" x 1.02" x 0.74" (LxWxH)

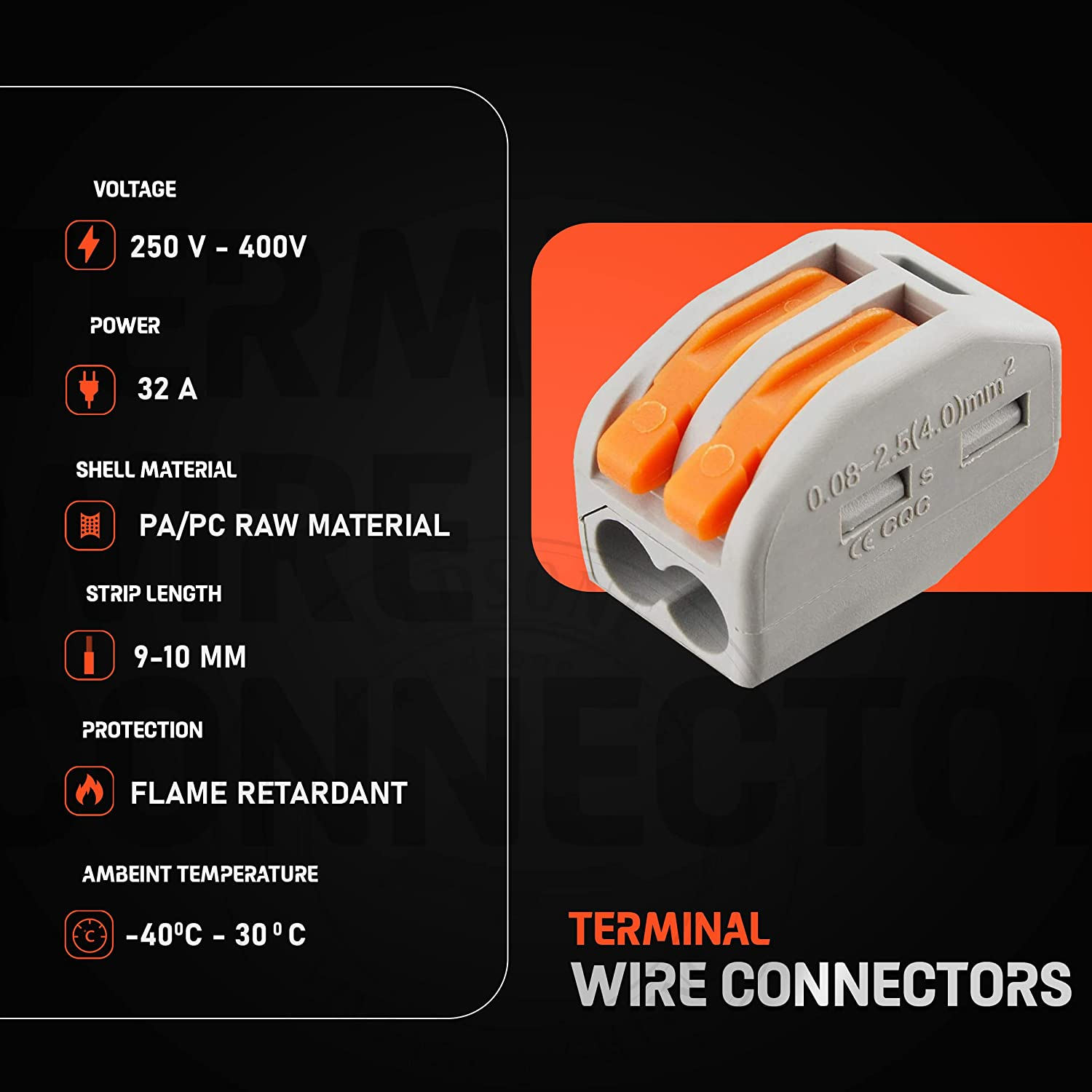

• Max. Voltage: EN 400 V
• Current Intensity: EN 32 A
• Max. Isolation: 4 kV
• Max. Continuous Service Temperature: 85°C

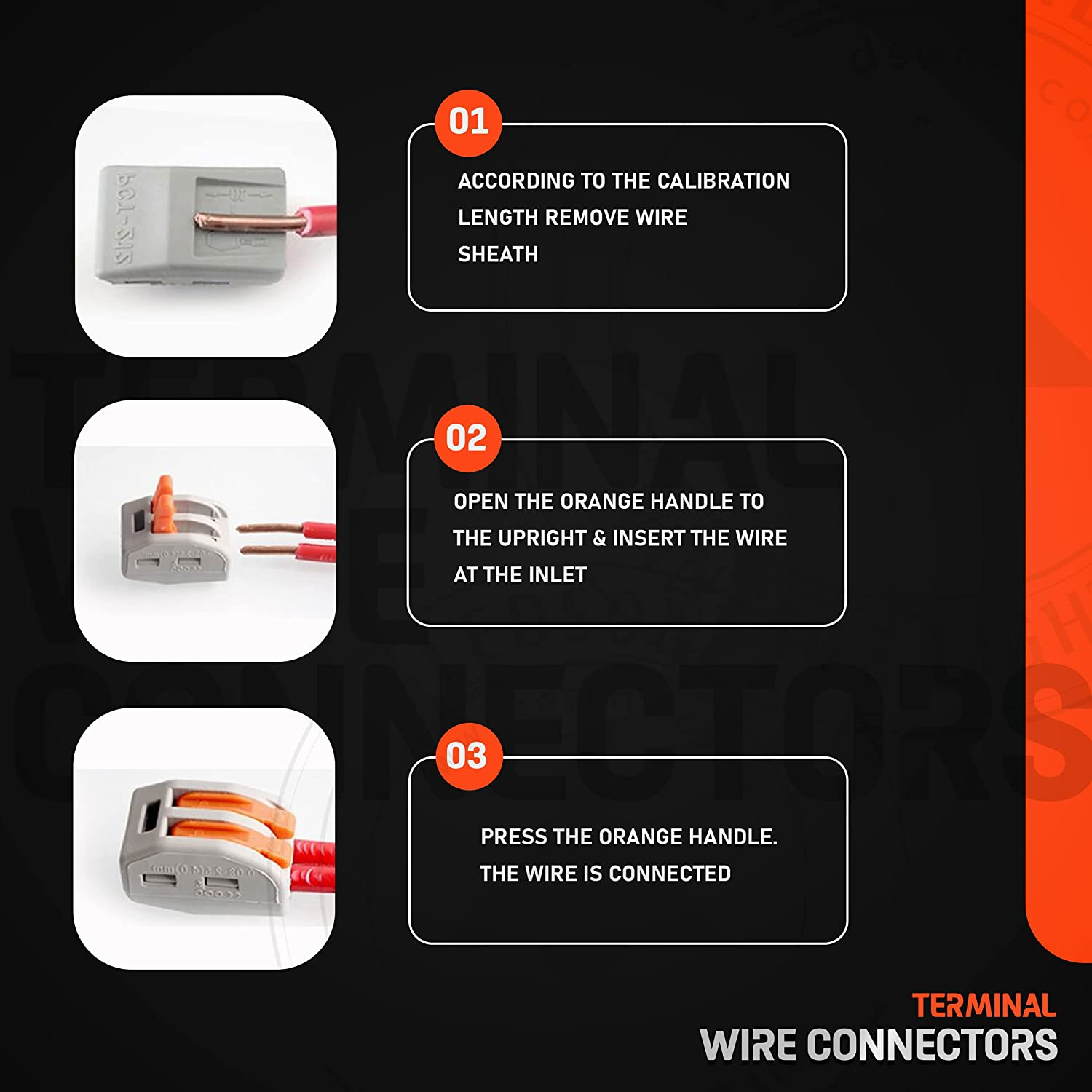

• Strip Length: 9-10mm

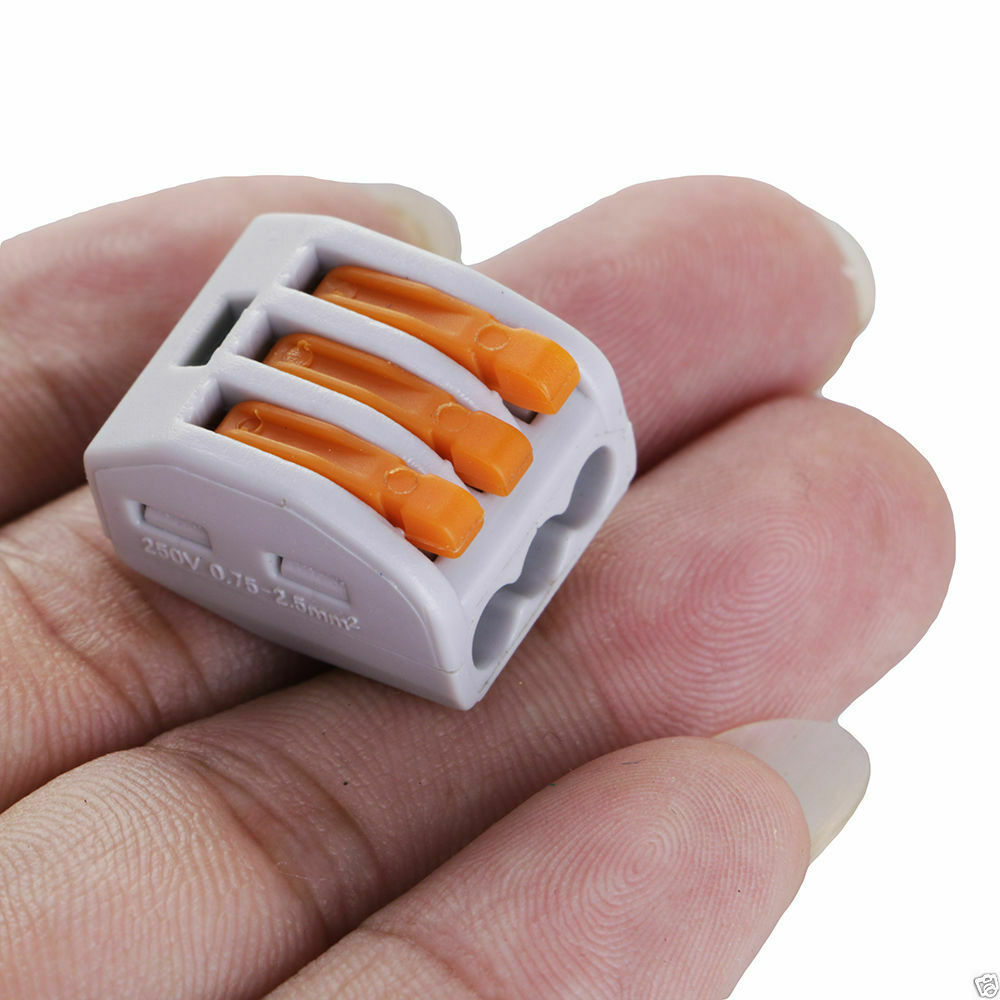

Compact connector with levers

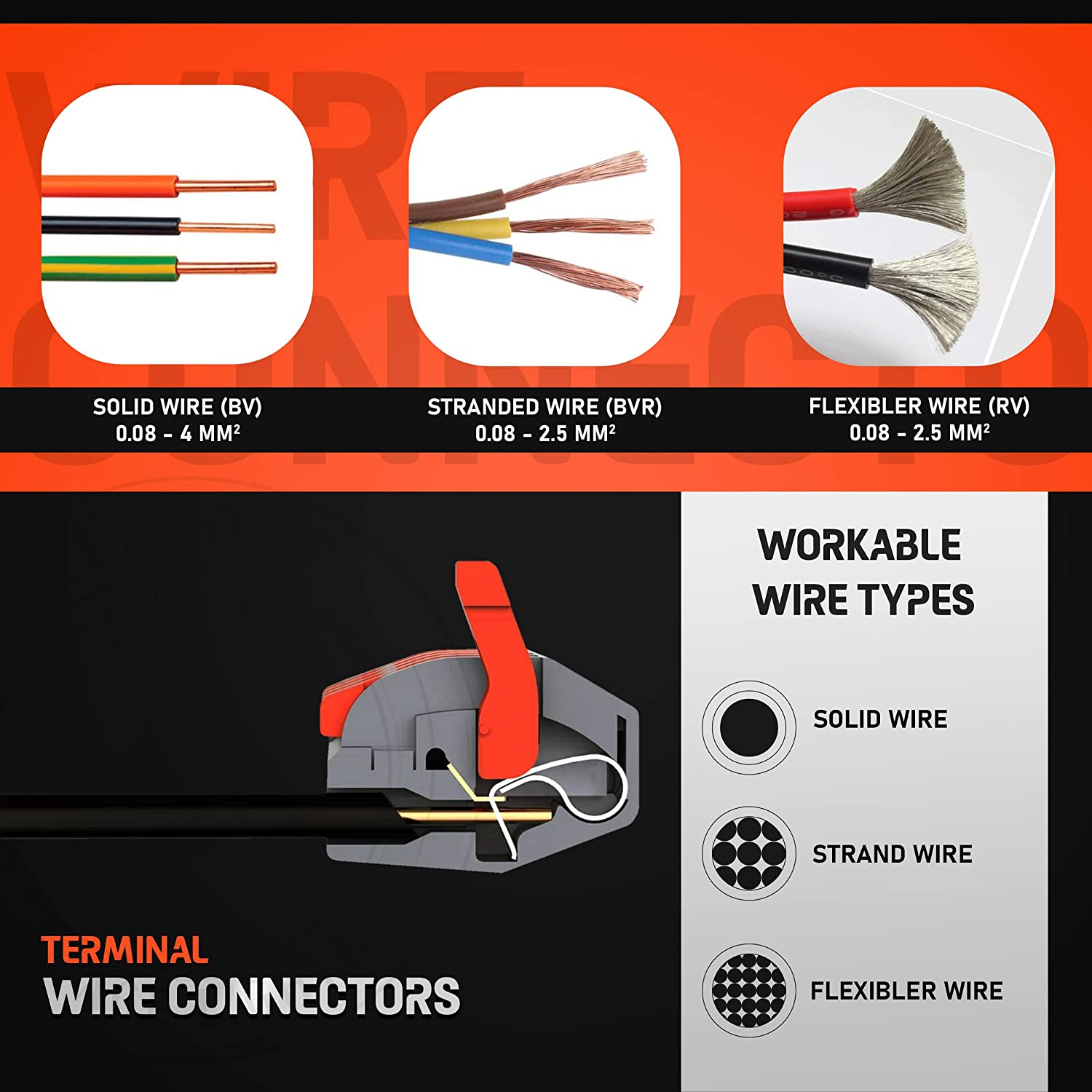

• Solid conductor size 0.08 to 2.5 mm² /AWG 14
• Stranded conductor size 0.08 to 2.5 mm² /AWG 14
• Flexible conductor size 0.08 to 4 mm² /AWG 28 - 12

Features

• Security - no loose wires, tape embrittlement danger, safe and transparent visible.
• Convenience - a test hole, measure the voltage without removing tape.
• Quick - direct plug, plug the wrong can be pulled out, followed again.
• Reliable - Each contact shrapnel independent, fit different wire diameter, safety shorting.

Package included :

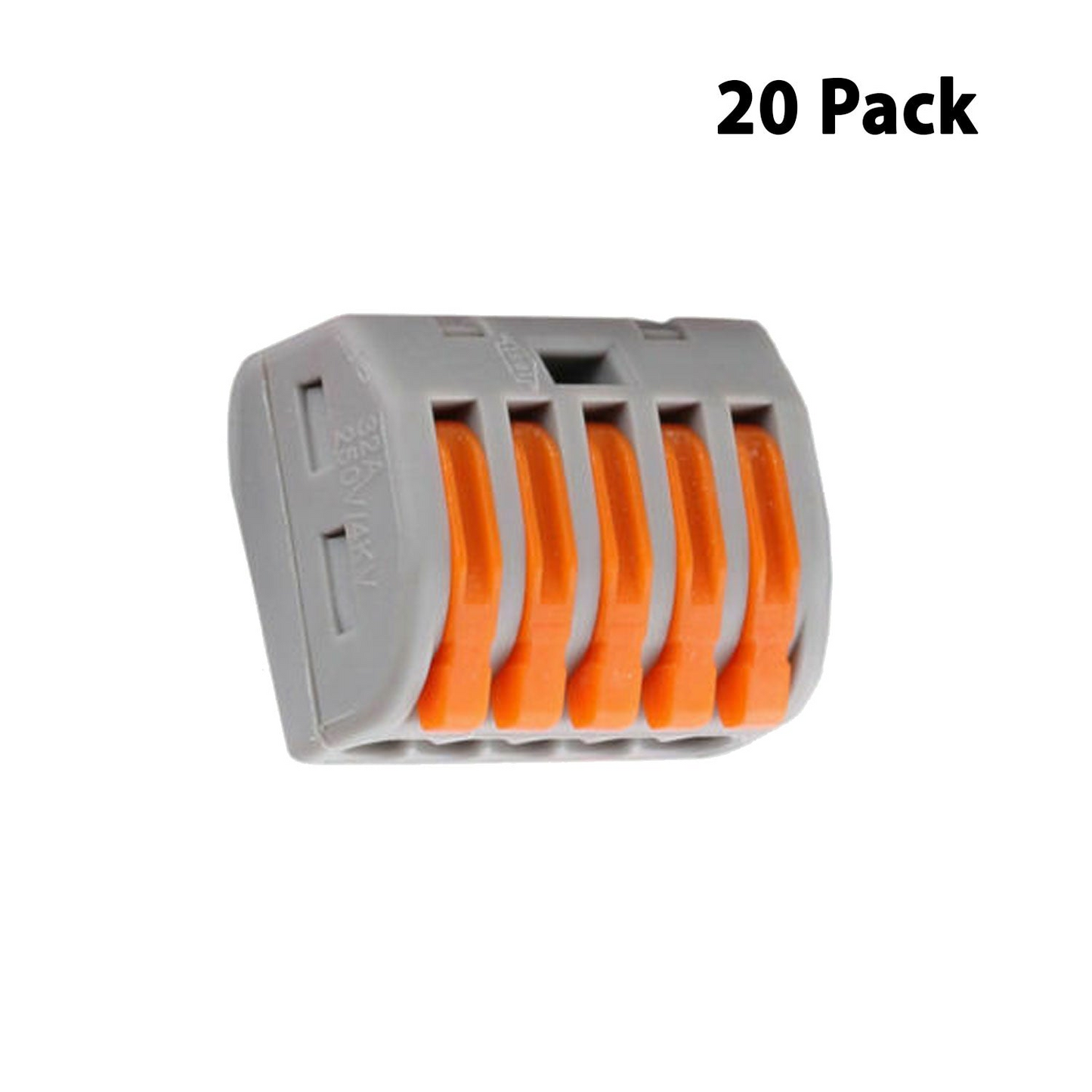

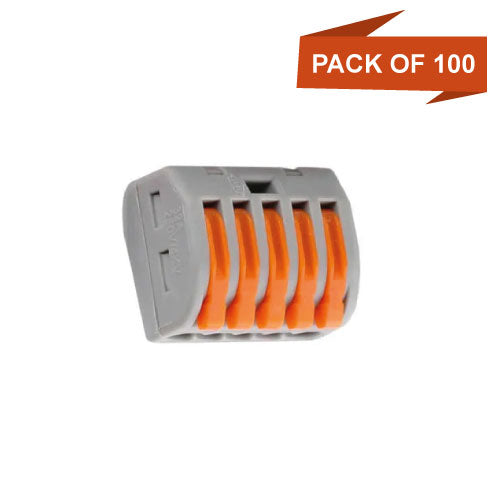

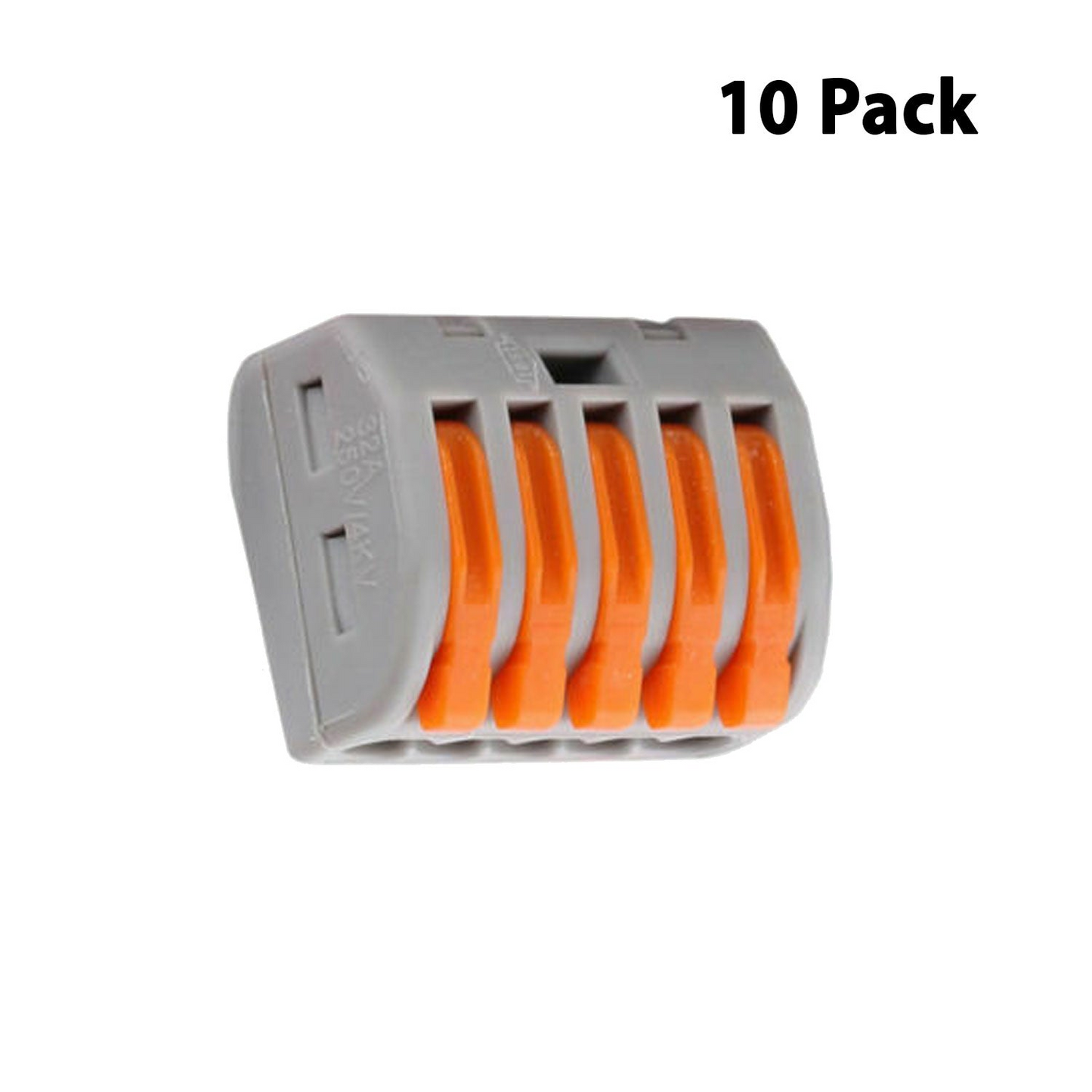

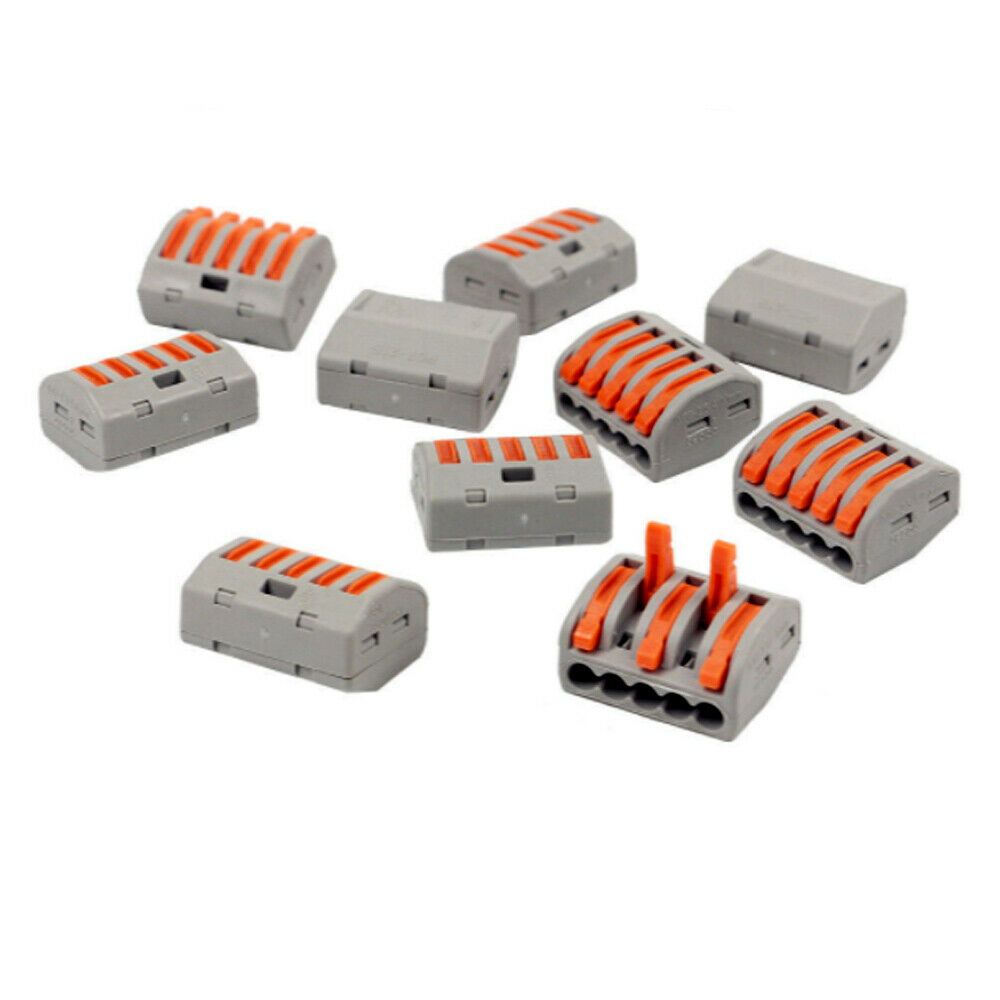

• 10/20/50/100 x 2/3/5 WAY wire connectots.
